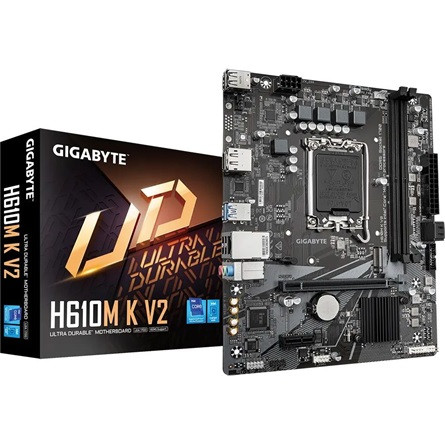

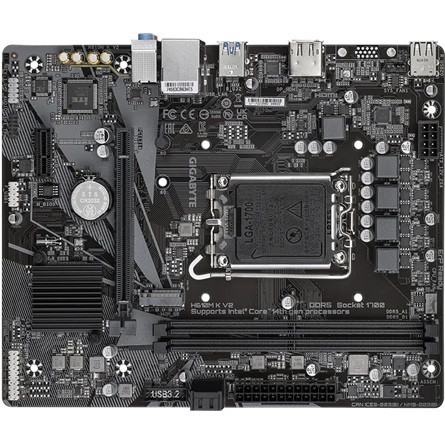

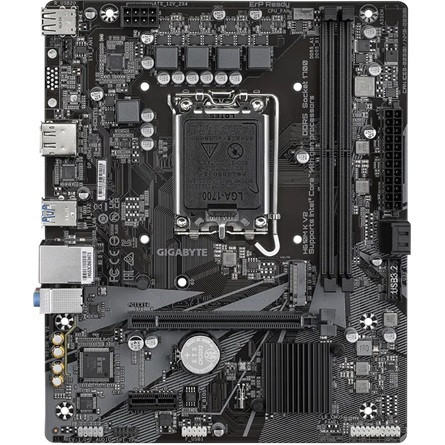

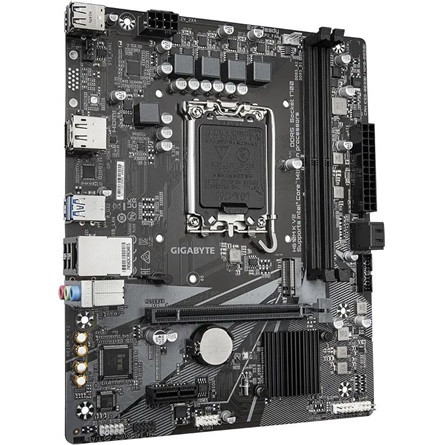

Gigabyte H610M K V2 desktop alaplap microATX

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
* Please refer to "CPU Support List" for more information.
L3 cache varies with CPU

Chipset

Intel^® H610 Express Chipset

Memory

14th and 13th Generation Intel^® Core™ i9/i7 Pocessors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel^® Core™ i5/i3 and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

* Support for DisplayPort 1.2 version and HDCP 2.3

Audio

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek^® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 2 x SATA 6Gb/s connectors

USB

Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

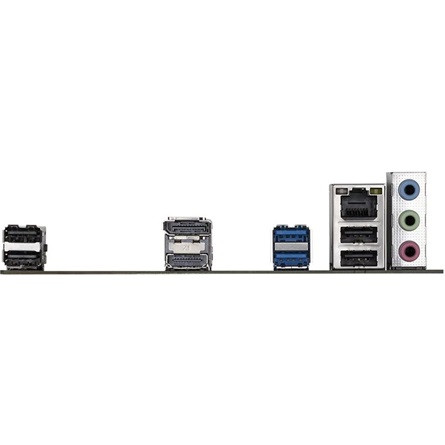

Back Panel Connectors

1 x HDMI port
1 x DisplayPort
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE^® I/O Controller Chip

H/W Monitoring

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Bundled Software

Norton^® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm
