SOS UPS forródrót :
Telefon : +36 1 236-3060
Fax : +36 1 349-6721
Email : sosups@sosups.hu
Képzett mérnökök segítenek az FSP UPS üzemeltetésével kapcsolatos problémák megoldásában. A garanciális ügyintézés továbbra is nálunk történik.
- ► Excellent microprocessor control guarantees high reliability
- ► Boost and buck AVR for voltage stabilization
- ► Auto restart while AC is recovering
- ► Compact Size
- ► Simulated sine wave
- ► Off-mode charging
- ► Cold start function
- ► Generator compatible
Capacity |
2000 VA / 1200 W |
Available Factory Settings |
110 / 120 VAC or 220 / 230 / 240 VAC |
Input Voltage |
162-290 VAC |
Input Frequence |
60/50 Hz (auto sensing) |
Output Voltage |
220V nominal |
Output / Frequence Range |
60 Hz or 50 Hz ±1 Hz |
Output / Transfer Time (Typical) |
Typical 2-6 ms |
Output / Waveform (Batt. Mode) |
Simulated Sine Wave |
Battery / Battery Type & Number |
12V / 9 Ah x 2 |
Battery / Typical Recharge Time |
4-6 hours recover to 90% capacity |
Indicators / Ac Mode |
Green lighting |
Indicators / Battery Mode |
Green flashing |
Indicators / Fault |
N / A |
Protection / Full Protection |
Overload, discharge and overcharge protection |
Alarm / Battery Mode |
Sounding every 10 seconds |
Alarm / Low Battery |
Sounding every second |
Alarm / Overload |
Sounding every 0.5 second |
Alarm / Battery Replacement Alarm |
Sounding every 2 seconds |
Alarm / Fault |
Continuously sounding |

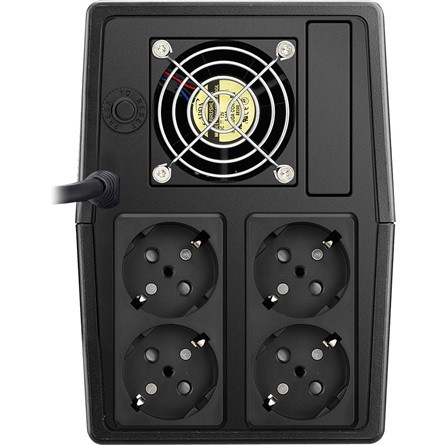

Outlet sockets |
4 x schuko |
Physical Dimension, D x W x H (mm) |
320 x 130 x 182 |
Physical Net Weight (kg) |
11 |
Operating Environment / Humidity |
0-90% RH @ 0-40°C (non-condensing) |
Operating Environment / Noise Level |
Less than 40dB |
Management / Optional USB / RS-232 Port |
Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC |
