- ► Excellent microprocessor control guarantees high reliability
- ► Boost and buck AVR for voltage stabilization
- ► Auto restart while AC is recovering
- ► Compact Size
- ► Simulated sine wave
- ► Off-mode charging
- ► Cold start function
- ► Generator compatible
| Capacity |
1500 VA / 900 W |
| Available Factory Settings |
110 / 120 VAC or 220 / 230 / 240 VAC |
| Input Voltage |
162-290 VAC |
| Input Frequence |
60/50 Hz (auto sensing) |
| Output Voltage |
220V nominal |
| Output / Frequence Range |
60 Hz or 50 Hz ±1 Hz |
| Output / Transfer Time (Typical) |
Typical 2-6 ms |
| Output / Waveform (Batt. Mode) |
Simulated Sine Wave |
| Battery / Battery Type & Number |
12V / 9 Ah x 2 |
| Battery / Typical Recharge Time |
4-6 hours recover to 90% capacity |
| Indicators / Ac Mode |
Green lighting |
| Indicators / Battery Mode |
Green flashing |
| Indicators / Fault |
N / A |
| Protection / Full Protection |
Overload, discharge and overcharge protection |
| Alarm / Battery Mode |
Sounding every 10 seconds |
| Alarm / Low Battery |
Sounding every second |
| Alarm / Overload |
Sounding every 0.5 second |
| Alarm / Battery Replacement Alarm |
Sounding every 2 seconds |
| Alarm / Fault |
Continuously sounding |

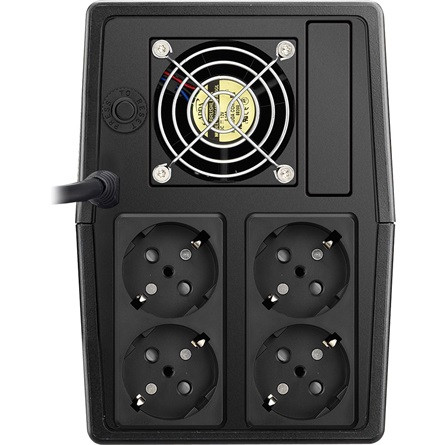

| Outlet sockets |
4 x schuko |
| Physical Dimension, D x W x H (mm) |
320 x 130 x 182 |
| Physical Net Weight (kg) |
10.4 |
| Operating Environment / Humidity |
0-90% RH @ 0-40°C (non-condensing) |
| Operating Environment / Noise Level |
Less than 40dB |
| Management / Optional USB / RS-232 Port |
Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC |
